AZ764S - - discontinued - Switching Voltage (max.): 400 VAC Switching Current (max.): 16 A Switched Power (max.): 4.000 VA 240 W Nominal Coil Voltage: 3 up to 110 VDC 12 up to 240 VAC Nominal Coil Power: from 400 mW 0,75 VA Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

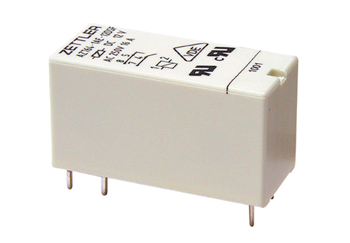

AZ764H - Power Relay Switching Voltage (max.): 400 VAC Switching Current (max.): 16 A Switched Power (max.): 4.000 VA 480 W Nominal Coil Voltage: 5 up to 48 VDC Nominal Coil Power: 250 mW Contact Configuration: 1 Form A (SPST/NO) Contact Gap: - Type of Enclosure: Flux proof Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

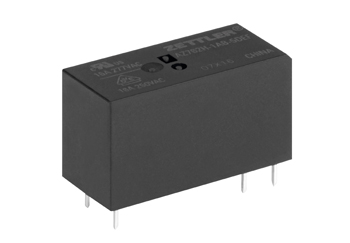

AZ762H - Power Relay Switching Voltage (max.): 440 VAC Switching Current (max.): 18.4 A Switched Power (max.): 4.600 VA 480 W Nominal Coil Voltage: 5 up to 60 VDC Nominal Coil Power: from 250 mW Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

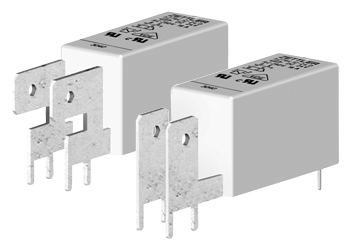

AZ764F - Power Relay Switching Voltage (max.): 400 VAC Switching Current (max.): 20 A Switched Power (max.): 5.000 VA 600 W Nominal Coil Voltage: 5 up to 24 VDC Nominal Coil Power: 250 mW Contact Configuration: 1 Form A (SPST/NO) Contact Gap: - Type of Enclosure: Flux proof Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

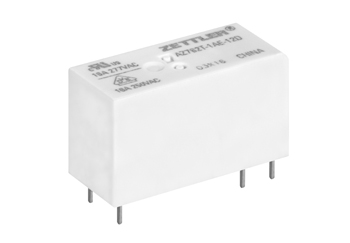

AZ762T - Power Relay Switching Voltage (max.): 440 VAC Switching Current (max.): 16 A Switched Power (max.): 4.432VA 480 W Nominal Coil Voltage: 5 up to 110 VDC Nominal Coil Power: from 400 mW Contact Configuration: 1 Form A (SPST/NO) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

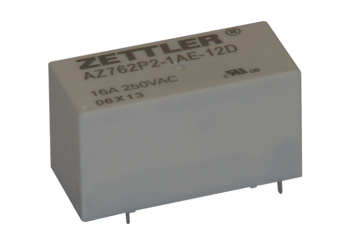

AZ762P - Power Relay Switching Voltage (max.): 350 VAC Switching Current (max.): 20 A Switched Power (max.): 5.000 VA 600 W Nominal Coil Voltage: 3 up to 24 VDC Nominal Coil Power: from 400 mW Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

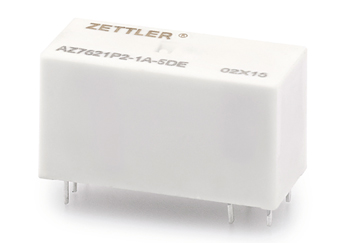

AZ7621P - Power Relay Switching Voltage (max.): 440 VAC Switching Current (max.): 16 A Switched Power (max.): 4.000 VA 480 W Nominal Coil Voltage: 5 up to 24 VDC Nominal Coil Power: from 196 mW Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

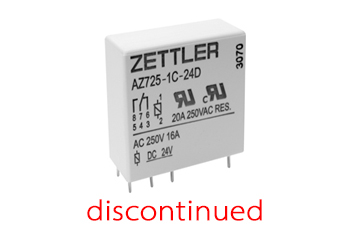

AZ725 - - discontinued - Switching Voltage (max.): 400 VAC Switching Current (max.): 20 A Switched Power (max.): 5.000 VA 600 W Nominal Coil Voltage: 5 up to 110 VDC Nominal Coil Power: from 510 mW Contact Configuration: 1 Form A (SPST/NO) 1 Form B (SPST/NC) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Dimensions LxWxH: 29,5 x 13 x 25,6 mm More

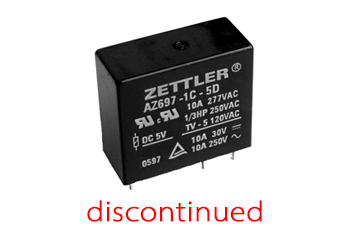

AZ697 - - discontinued - Switching Voltage (max.): 380 VAC Switching Current (max.): 10 A Switched Power (max.): 2.500 VA 300 W Nominal Coil Voltage: 3 up to 110 VDC Nominal Coil Power: from 500 mW Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 13 x 25,9 mm More
AZ961 - - discontinued - Switching Voltage (max.): 300 VAC Switching Current (max.): 5 A Switched Power (max.): 1.125 VA 150 W Nominal Coil Voltage: 3 up to 48 VDC Nominal Coil Power: from 176 mW Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 20,5 x 10,5 x 20,5 mm More
