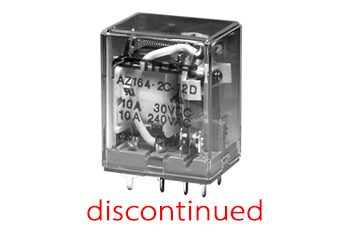

AZ164 - - discontinued - Switching Voltage (max.): 250 VAC Switching Current (max.): 15 A Switched Power (max.): 3.750 VA 450 W Nominal Coil Voltage: 5 up to 110 VDC 6 up to 240 VAC Nominal Coil Power: from 890 mW 1,2 VA Contact Configuration: 1 Form C (SPDT) 2 Form C (DPDT) 3 Form C (3PDT) 4 Form C (4PDT) Contact Gap: - Type of Enclosure: Flux proof Dimensions LxWxH: 28 x 21,5 x 35,5 mm More

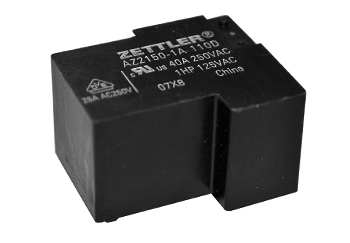

AZ2150 - High Power Relay Switching Voltage (max.): 300 VAC Switching Current (max.): 40 A Switched Power (max.): 10.000 VA 900 W Nominal Coil Voltage: 5 up to 110 VDC Nominal Coil Power: from 840 mW Contact Configuration: 1 Form A (SPST/NO) 1 Form B (SPST/NC) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 31,8 x 26,9 x 19,1 mm More

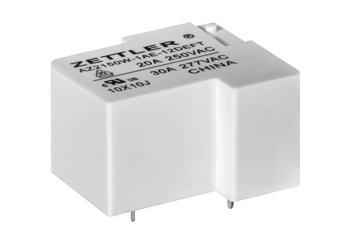

AZ2150W - High Power Relay / Solar Relay Switching Voltage (max.): 440 VAC Switching Current (max.): 30 A Switched Power (max.): 8.310 VA 900 W Nominal Coil Voltage: 5 up to 48 VDC Nominal Coil Power: 1,1 W Contact Configuration: 1 Form A (SPST/NO) Contact Gap: 1,75 mm Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 31,8 x 26,9 x 19,1 mm More

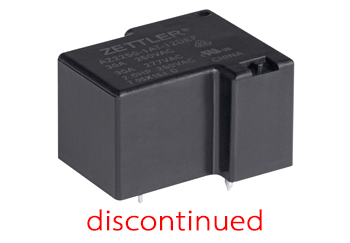

AZ2250 - High Power Relay Switching Voltage (max.): 277 VAC Switching Current (max.): 40 A Switched Power (max.): 11.080 VA 1120 W Nominal Coil Voltage: 5 up to 110 VDC 12 up to 277 VAC Nominal Coil Power: from 840 mW from 2,1 VA Contact Configuration: 1 Form A (SPST/NO) 1 Form B (SPST/NC) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 32,2 x 27 x 20,1 mm More

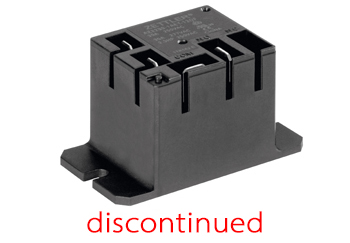

AZ2280 - High Power Relay Switching Voltage (max.): 277 VAC Switching Current (max.): 30 A Switched Power (max.): 8.310 VA 840 W Nominal Coil Voltage: 5 up to 48 VDC Nominal Coil Power: from 840 mW from 2,1 VA Contact Configuration: 1 Form A (SPST/NO) 1 Form B (SPST/NC) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 50,2 x 27,5 x 27,8 mm More
AZ2501P1 - High Power Relay Switching Voltage (max.): 440 VAC Switching Current (max.): 50 A Switched Power (max.): 13.850 VA 1.500 W Nominal Coil Voltage: 6 up to 48 VDC Nominal Coil Power: 1,5W Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 39,3 x 15,3 x 30,5 mm More

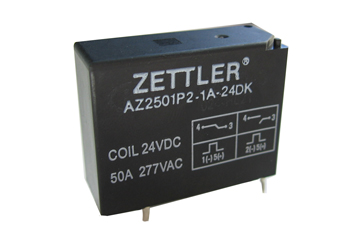

AZ2501P2 - High Power Relay Switching Voltage (max.): 440 VAC Switching Current (max.): 50 A Switched Power (max.): 13.850 VA 1.500 W Nominal Coil Voltage: 6 up to 48 VDC Nominal Coil Power: 3,0 W Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 39,3 x 15,3 x 30,5 mm More

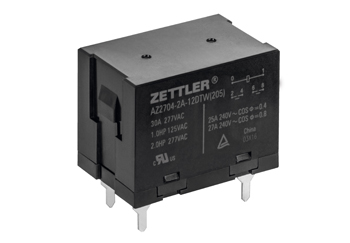

AZ2704 - High Power Relay / Solar Relay Switching Voltage (max.): 400 VAC Switching Current (max.): 27 A Switched Power (max.): 6.925 VA 810 W Nominal Coil Voltage: 3 up to 200 VDC 6 up to 240 VAC Nominal Coil Power: from 1,8 W from 1,9 VA Contact Configuration: 1 Form A (SPST/NO) 2 Form A (DPST/NO) Contact Gap: 3,0 mm Type of Enclosure: Flux proof Dimensions LxWxH: 50,5 x 33,5 x 36 mm More

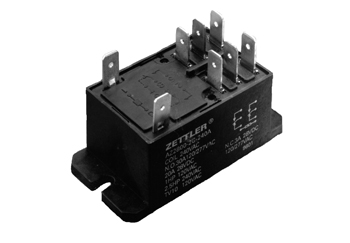

AZ2800 - High Power Relay Switching Voltage (max.): 600 VAC Switching Current (max.): 40 A Switched Power (max.): 11.080 VA 1.200 W Nominal Coil Voltage: 6 up to 110 VDC 12 up to 277 VAC Nominal Coil Power: from 1,6 W 4,0 VA Contact Configuration: 2 Form A (DPST/NO) 2 Form C (DPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 68,6 x 34,5 x 37,8 mm More

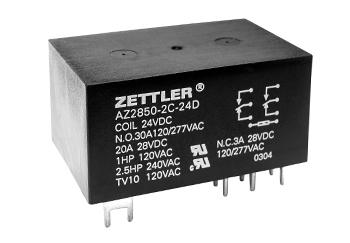

AZ2850 - High Power Relay Switching Voltage (max.): 600 VAC Switching Current (max.): 40 A Switched Power (max.): 11.080 VA 1.200 W Nominal Coil Voltage: 6 up to 110 VDC 12 up to 277 VAC Nominal Coil Power: from 1,6 W 4,0 VA Contact Configuration: 2 Form A (DPST/NO) 2 Form C (DPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 52 x 33,8 x 30,5 mm More
