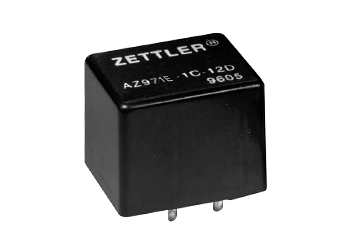

AZ971E - Automotive Relay Switching Voltage (max.): 150 VDC Switching Current (max.): 40 A Switched Power (max.): 560 W Nominal Coil Voltage: 6 up to 24 VDC Nominal Coil Power: from 1,6 W Contact Configuration: 1 Form A (SPST/NO) 1 Form B (SPST/NC) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Open Flux proof Epoxy sealed Dimensions LxWxH: 21,1 x 26,2 x 21,1 mm More

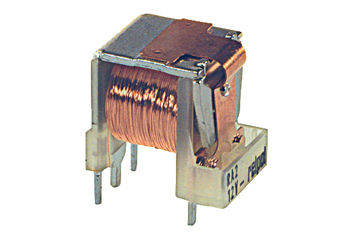

RA2 - Automotive Relay Switching Voltage (max.): 70 VAC Switching Current (max.): 20 A Switched Power (max.): 270 W Nominal Coil Voltage: 5 up to 48 VDC Nominal Coil Power: from 1,4 W Contact Configuration: 1 Form A (SPST/NO) 2 Form A (DPST/NO) 1 Form B (SPST/NC) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Open Flux proof Dimensions LxWxH: 18,6 x 13 x 18,5 mm More

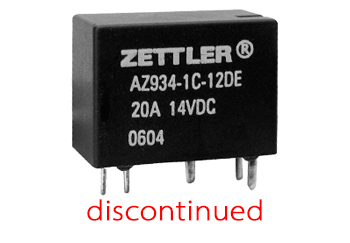

AZ934 - - discontinued - Switching Voltage (max.): 28 VDC Switching Current (max.): 25 A Switched Power (max.): 280 W Nominal Coil Voltage: 6 up to 12 VDC Nominal Coil Power: 560 mW Contact Configuration: 1 Form C (SPDT) 2 Form C (DPDT) Contact Gap: - Type of Enclosure: Epoxy sealed Dimensions LxWxH: 17,8 x 9 x 13,5 mm More

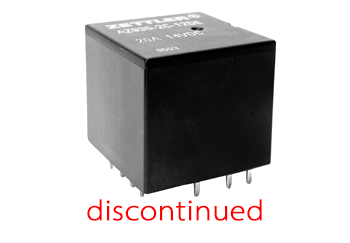

AZ935 - - discontinued - Switching Voltage (max.): 28 VDC Switching Current (max.): 25 A Switched Power (max.): 280 W Nominal Coil Voltage: 12 VDC Nominal Coil Power: 560 mW Contact Configuration: 2 Form C (DPDT) Contact Gap: - Type of Enclosure: Epoxy sealed Dimensions LxWxH: 23 x 22,5 x 21 mm More

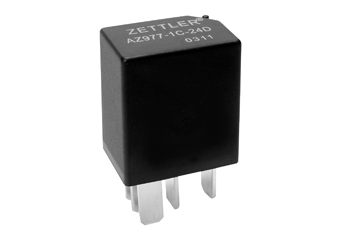

AZ977 - Automotive Relay Switching Voltage (max.): 150 VDC Switching Current (max.): 20 A Switched Power (max.): 280 W Nominal Coil Voltage: 6 up to 24 VDC Nominal Coil Power: from 1,1 W Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 23 x 15,5 x 26 mm More

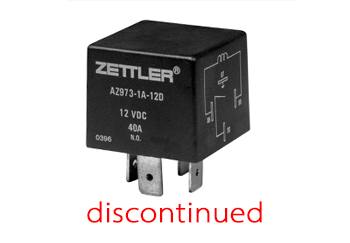

AZ973 - - discontinued - Switching Voltage (max.): 75 VDC Switching Current (max.): 40 A Switched Power (max.): 560 W Nominal Coil Voltage: 6 up to 24 VDC Nominal Coil Power: 1,6 W Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Dimensions LxWxH: 26,2 x 26,2 x 23,7 mm More

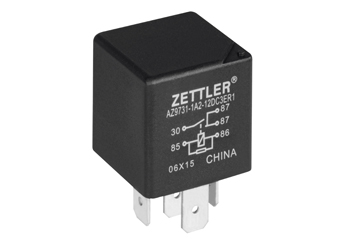

AZ9731 - Automotive Relay Switching Voltage (max.): 28 VDC Switching Current (max.): 40 A Switched Power (max.): 560 W Nominal Coil Voltage: 6 up to 24 VDC Nominal Coil Power: 1,6 W Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 26,5 x 26,5 x 24,5 mm More

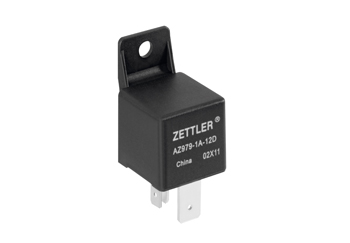

AZ979 - Automotive Relay Switching Voltage (max.): 30 VDC Switching Current (max.): 80 A Switched Power (max.): 1.120 W Nominal Coil Voltage: 6 up to 24 VDC Nominal Coil Power: from 1,6 W Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29,8 x 29,8 x 26,5 mm More

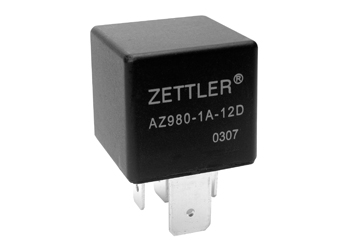

AZ980 - Automotive Relay Switching Voltage (max.): 30 VDC Switching Current (max.): 80 A Switched Power (max.): 1.120 W Nominal Coil Voltage: 6 up to 24 VDC Nominal Coil Power: from 1,6 W Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29,8 x 29,8 x 26,5 mm More

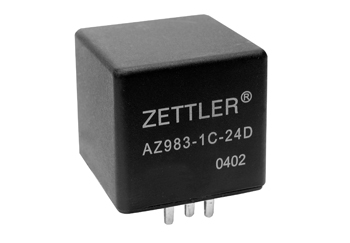

AZ983 - Automotive Relay Switching Voltage (max.): 28 VDC Switching Current (max.): 80 A Switched Power (max.): 1.120 W Nominal Coil Voltage: 6 up to 24 VDC Nominal Coil Power: 1,8 W Contact Configuration: 1 Form A (SPST/NO) 1 Form B (SPST/NC) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 29 x 28 mm More
