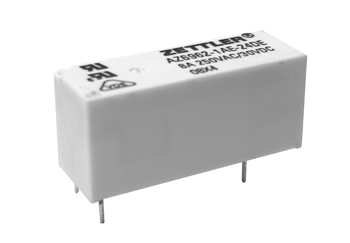

AZ6962 - Power Relay Switching Voltage (max.): 440 VAC Switching Current (max.): 10 A Switched Power (max.): 2.500 VA 240 W Nominal Coil Voltage: 5 up to 60 VDC Nominal Coil Power: from 220 mW Contact Configuration: 1 Form A (SPST/NO) 1 Form B (SPST/NC) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 28,5 x 10,1 x 12,5 mm More

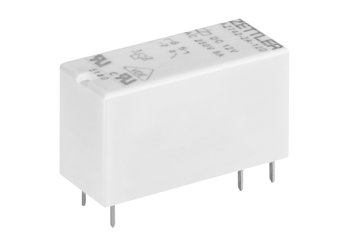

AZ742 - Power Relay Switching Voltage (max.): 400 VAC Switching Current (max.): 10 A Switched Power (max.): 2.000 VA 240 W Nominal Coil Voltage: 3 up to 110 VDC 12 up to 240 VAC Nominal Coil Power: from 400 mW 0,75 VA Contact Configuration: 2 Form A (DPST/NO) 2 Form C (DPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

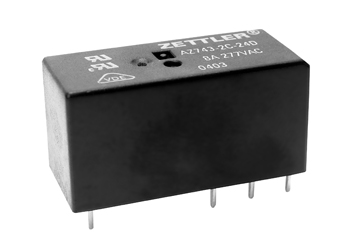

AZ743 - Power Relay Switching Voltage (max.): 440 VAC Switching Current (max.): 10 A Switched Power (max.): 2.770 VA 240 W Nominal Coil Voltage: 5 up to 110 VDC 24 up to 230 VAC Nominal Coil Power: from 400 mW 0,75 VA Contact Configuration: 2 Form A (DPST/NO) 2 Form C (DPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

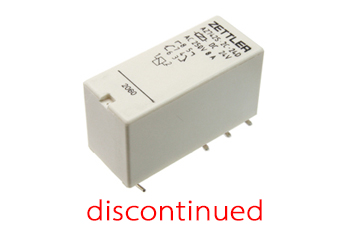

AZ742S - - discontinued - Switching Voltage (max.): 400 VAC Switching Current (max.): 8 A Switched Power (max.): 2.000 VA 240 W Nominal Coil Voltage: 3 up to 110 VDC 12 up to 240 VAC Nominal Coil Power: from 400 mW 0,75 VA Contact Configuration: 2 Form A (DPST/NO) 2 Form C (DPDT) Contact Gap: - Type of Enclosure: Flux proof Dimensions LxWxH: 29 x 12,7 x 17,7 mm More

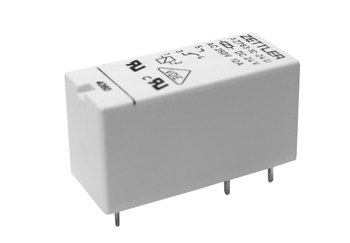

AZ763 - Power Relay Switching Voltage (max.): 400 VAC Switching Current (max.): 12 A Switched Power (max.): 3.000 VA 360 W Nominal Coil Voltage: 3 up to 110 VDC 12 up to 240 VAC Nominal Coil Power: from 400 mW 0,75 VA Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

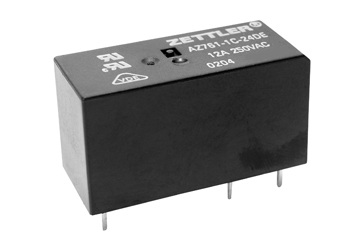

AZ761 - Power Relay Switching Voltage (max.): 400 VAC Switching Current (max.): 12 A Switched Power (max.): 3.324 VA 360 W Nominal Coil Voltage: 5 up to 110 VDC 24 up to 230 VAC Nominal Coil Power: from 250 mW 0,75 VA Contact Configuration: 1 Form A (SPST/NO) 1 Form B (SPST/NC) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

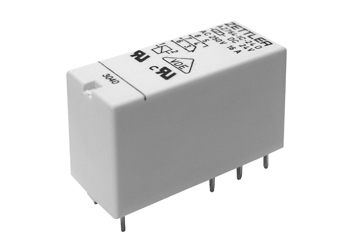

AZ764 - Power Relay Switching Voltage (max.): 400 VAC Switching Current (max.): 20 A Switched Power (max.): 5.000 VA 480 W Nominal Coil Voltage: 3 up to 110 DC 12 up to 240 AC Nominal Coil Power: from 400 mW 0,75 VA Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

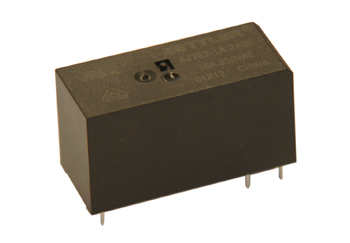

AZ762 - Power Relay Switching Voltage (max.): 440 VAC Switching Current (max.): 20 A Switched Power (max.): 5.540 VA 480 W Nominal Coil Voltage: 5 up to 110 VDC 24 up to 230 VAC Nominal Coil Power: from 250 mW 0,75 VA Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29 x 12,7 x 15,7 mm More

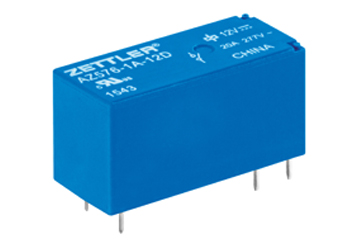

AZ576 - Power Relay Switching Voltage (max.): 277 VAC Switching Current (max.): 20 A Switched Power (max.): 5.540 VA 510 W Nominal Coil Voltage: 3 up to 110 VDC Nominal Coil Power: 400 mW Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Epoxy sealed Dimensions LxWxH: 29,3 x 12,7 x 15,3 mm More

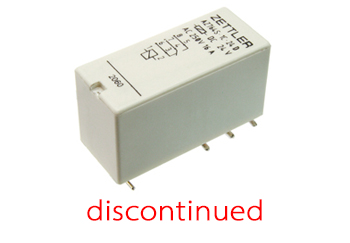

AZ764S - - discontinued - Switching Voltage (max.): 400 VAC Switching Current (max.): 16 A Switched Power (max.): 4.000 VA 240 W Nominal Coil Voltage: 3 up to 110 VDC 12 up to 240 VAC Nominal Coil Power: from 400 mW 0,75 VA Contact Configuration: 1 Form A (SPST/NO) 1 Form C (SPDT) Contact Gap: - Type of Enclosure: Flux proof Dimensions LxWxH: 29 x 12,7 x 15,7 mm More
